%%{init: {'theme': 'base', 'themeVariables': {'fontFamily': 'monospace'}}}}%%
graph LR
subgraph Client["Your Computer"]
priv["Private Key<br/>~/.ssh/id_ed25519<br/>(secret)"]
end
subgraph Server["EC2 Instance"]
auth["authorized_keys<br/>(trusted public keys)"]
end
priv -->|"presents key"| auth
auth -.-|"match?<br/>grant / deny"| priv
style Client fill:#E8E8E8,stroke:#333,stroke-width:2px,color:#000
style Server fill:#1B2A41,stroke:#fff,stroke-width:2px,color:#fff
style priv fill:#D2562B,stroke:#fff,stroke-width:1px,color:#fff
style auth fill:#2A6F77,stroke:#fff,stroke-width:1px,color:#fff
Managing SSH Key Pairs
Working across multiple machines makes it easy to get sloppy with keys, so a few rules are worth stating plainly.
Security considerations
Keep the AWS
.pemkey on one machine only. It’s the recovery key for the instance. There’s no reason to copy it to a laptop we carry around.Give each machine its own key when you can. Per-machine keys mean a lost laptop is a one-line fix on the server, not a full key rotation.
Never open port 22 to the world for convenience. In the security group, scope the SSH inbound rule to the IP addresses we actually connect from. Using
0.0.0.0/0is fine for a quick test, but leaving it open is an invitation.Rotate keys you can’t account for. If a private key might have leaked, or a machine is gone, remove its public key from
~/.ssh/authorized_keyson the server and generate a replacement.
Logging from other machines
So far we’ve connected from the same computer that created the key pair. But at some point we’ll want to reach the instance from a second machine, like a MacBook Pro we use when we’re away from our main desktop. The problem is that our keys live on the original computer, and the server only trusts the keys it already knows about. This section covers how to get set up on a new machine without weakening the security of the instance.
SSH authentication is based on a key pair: the private key stays on our computer, and the matching public key lives on the server in ~/.ssh/authorized_keys. The server has no idea which machine we’re sitting at. It only checks whether the private key we present matches a public key it trusts. This means a new machine can’t connect until it holds a private key the server recognizes.
We have two options:
Generate a fresh key pair on the new machine and add its public key to the server
Copy an existing private key to the new machine.
The first option is safer, so we’ll cover it below. Copying private keys around is convenient, but every copy is another file that can leak.
Example: generate a new key on the MacBook
This is the same process we followed in Creating a regular SSH key for routine access, just run on the new machine.
Do I need to install aws console on my mac to SSH into the EC2 instance?
No. To SSH into an EC2 instance, we only need:
- SSH (built into macOS by default)
- A private key file (
.pemor.pub)
- The instance’s IP address
We don’t need the AWS Console or AWS CLI installed to SSH. However, the AWS CLI is useful if we want to manage keys and instances from the command line (e.g., aws ec2 create-key-pair).
On my MacBook, I completed the following steps:
Step 1: Create key pair

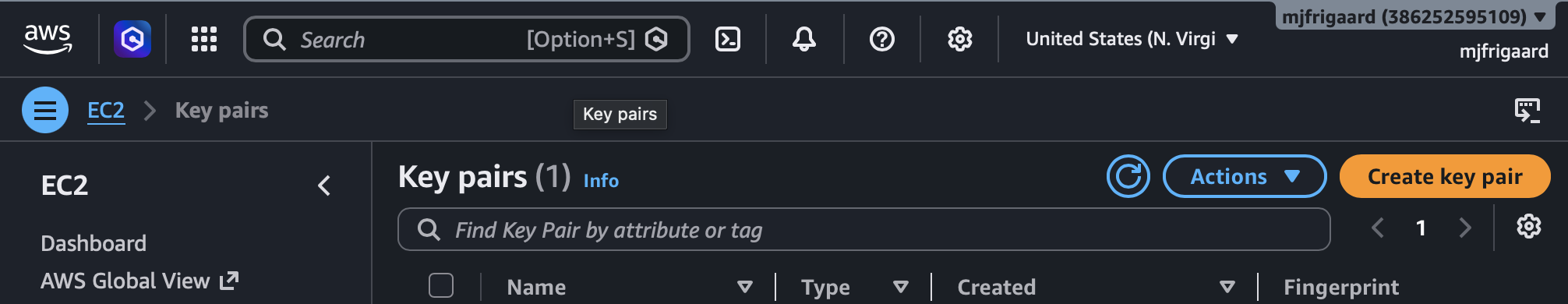

We’ll start by creating/downloading a new key pair from the AWS Console:
Move the downloaded .pem file into the .ssh/ folder and run the following:
ssh-keygen -t ed25519 -f ~/.ssh/<your-key-name>-macbook -C "your-email@example.com"Generating public/private ed25519 key pair.A passphrase is requested (but not required).
Enter passphrase for "/path/to/.ssh/<your-key-name>-macbook" (empty for no passphrase):
Enter same passphrase again:After clicking Enter twice, you’ll see something like:
Your identification has been saved in /path/to/.ssh/<your-key-name>-macbook
Your public key has been saved in /path/to/.ssh/<your-key-name>-macbook.pub
The key fingerprint is:
SHA256:XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX your-email@example.com
The key's randomart image is:
+--[ED25519 256]--+
| + *o+=o..|
| ... o *.*o+*. |
| ..oo+ + o.|
| o S =.*. |
| o o o + . |
| .=*o o o.+|
| = . . . . o =|
| .. . ..|
|S. Eo . o +o|
+----[SHA256]-----+We now have the following files in the ~/.ssh/:
~/.ssh/
├── <your-key-name>-macbook
├── <your-key-name>-macbook.pem
└── <your-key-name>-macbook.pubStep 2: Copy public key
Giving the key a machine-specific name (like -macbook) makes it easy to tell later which key belongs to which computer. Next, display the new public key so we can copy it:
cat ~/.ssh/<your-key-name>-macbook.pubssh-ed25519 XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX your-email@example.comCopy this somewhere safe (like a password manager).
Step 4: Test connection
Now we test the connection from our MacBook with its own key:
ssh -i ~/.ssh/<your-key-name>-macbook ec2-user@YOUR_PUBLIC_IP_ADDRESSThe first time we connect from a new machine, SSH has never seen this server before, so it asks us to verify the host key. The output looks something like the block below (the real addresses and fingerprint are shown here as placeholders):
The authenticity of host 'YOUR_PUBLIC_IP_ADDRESS (YOUR_PUBLIC_IP_ADDRESS)' can't be established.
ED25519 key fingerprint is SHA256:XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX.
This key is not known by any other names.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yesThe The authenticity of host ... can't be established. is the host key verification. This means our client has no record of this server yet, so it can’t confirm we’re talking to the right machine.
We answer yes only after checking the fingerprint against the value AWS reported for the instance. After confirming, we see the key has been added to the list of known hosts.
Warning: Permanently added 'YOUR_PUBLIC_IP_ADDRESS' (ED25519) to the list of known hosts.Once we accept it, SSH stores it in ~/.ssh/known_hosts and won’t prompt again unless the key changes.
** WARNING: connection is not using a post-quantum key exchange algorithm.
** This session may be vulnerable to "store now, decrypt later" attacks.
** The server may need to be upgraded. See https://openssh.com/pq.htmlNewer OpenSSH versions try a post-quantum key exchange by default. When the server doesn’t support it, SSH prints a warning, then falls back to a classical algorithm (this is informational, not an error).
Successful login
In the Terminal, we’ll see Last login: ... and the [ec2-user@ip-... ~]$ prompt. The shell prompt changing to the instance’s user and hostname confirms we’re now on the EC2 server.
Last login: <day> <month> <dd> <hh:mm:ss> <yyyy> from YOUR_PUBLIC_IP_ADDRESS
, #_
~\_ ####_ Amazon Linux 2
~~ \_#####\
~~ \###| AL2 End of Life is 2026-06-30.
~~ \#/ ___
~~ V~' '->
~~~ / A newer version of Amazon Linux is available!
~~._. _/
_/ _/ Amazon Linux 2023, GA and supported until 2029-06-30.
_/m/' https://aws.amazon.com/linux/amazon-linux-2023/
[ec2-user@ip-YOUR_INSTANCE_HOSTNAME ~]$We can confirm the new key works because the login completes without asking for a password or the old key.
%%{init: {'theme': 'base', 'themeVariables': {'fontFamily': 'monospace'}}}}%%
graph TD
A(["Step 1: Generate key pair<br/>on MacBook<br/><code>ssh-keygen</code>"]) --> B["Step 2: Copy public key<br/>from MacBook<br/><code>cat ...pub</code>"]
B --> C["Step 3: Add to server<br/>from another machine<br/>SSH + append to <code>authorized_keys</code>"]
C --> D["Step 4: Test<br/>Connect from MacBook<br/>with new key"]
D --> E(["✓ Access granted"])
style A fill:#D2562B,stroke:#fff,stroke-width:2px,color:#fff
style B fill:#D2562B,stroke:#fff,stroke-width:2px,color:#fff
style C fill:#2A6F77,stroke:#fff,stroke-width:2px,color:#fff
style D fill:#D2562B,stroke:#fff,stroke-width:2px,color:#fff
style E fill:#4CAF50,stroke:#fff,stroke-width:2px,color:#fff
Logging in from other machines (notes)
The advantage here is that each machine has its own key. If our MacBook is ever lost or stolen, we can remove that one public key from authorized_keys and the other machines keep working.
%%{init: {'theme': 'base', 'themeVariables': {'fontFamily': 'monospace'}}}}%%
graph LR
subgraph Mac["MacBook"]
mackey["Private Key<br/><your-key-name>-macbook"]
end
subgraph Ubuntu["System76/Ubuntu"]
ubuntukey["Private Key<br/><your-key-name>"]
end
subgraph Server["EC2 Instance<br/>authorized_keys"]
auth["<your-key-name>.pub<br/><your-key-name>-macbook.pub"]
end
mackey -->|"presents"| auth
ubuntukey -->|"presents"| auth
style Mac fill:#A2AAAD,stroke:#333,stroke-width:2px,color:#000
style Ubuntu fill:#FF6B35,stroke:#333,stroke-width:2px,color:#fff
style Server fill:#1B2A41,stroke:#fff,stroke-width:2px,color:#fff
style mackey fill:#D2562B,stroke:#fff,stroke-width:1px,color:#fff
style ubuntukey fill:#D2562B,stroke:#fff,stroke-width:1px,color:#fff
style auth fill:#2A6F77,stroke:#fff,stroke-width:1px,color:#fff
Replacing key pairs
Key pair names are immutable in AWS, which means they can’t be renamed; we must create a new one and replace the old.
Step 1. Create the new key pair
aws ec2 create-key-pair \
--key-name <my-better-name> \
--key-type rsa \
--key-format pem \
--query 'KeyMaterial' \
--output text > ~/.ssh/<my-better-name>.pemchmod 400 ~/.ssh/<my-better-name>.pemOr via Console: EC2 > Key Pairs > Create key pair
Step 2. Get the public key
ssh-keygen -y -f ~/.ssh/<my-better-name>.pem > ~/.ssh/<my-better-name>.pubcat ~/.ssh/<my-better-name>.pubStep 3. Add the new public key to the instance
SSH in using the <old-key>.pem key:
ssh -i ~/.ssh/<old-key>.pem ec2-user@<instance-ip>Then append the new public key:
echo "ssh-rsa AAAA...new-key-content..." >> ~/.ssh/authorized_keysStep 4. Test the new key in a new terminal (keep the old session open)
ssh -i ~/.ssh/<my-better-name>.pem ec2-user@<instance-ip>Step 6: Delete the old key pair from AWS
aws ec2 delete-key-pair --key-name <old-key>Then delete the old .pem locally.
Replacing key pairs (notes)
The “Key pair name” shown in the EC2 console for an instance reflects the key used at launch and won’t update, but access is controlled by
~/.ssh/authorized_keyson the instance itself.Security groups, IAM roles, EBS volumes, and Elastic IP all remain unchanged.
If you want the console to reflect the new key name too, you’d need to create an AMI and launch a new instance with the new key, which is usually overkill.
Setting up an SSH config
Typing the full:
ssh -i ~/.ssh/<your-key-name> ec2-user@YOUR_PUBLIC_IP_ADDRESScommand every time gets old quickly. SSH reads a config file at ~/.ssh/config that lets us assign a short alias to a connection. On the MacBook, we open (or create) the file:
touch ~/.ssh/configchmod 600 ~/.ssh/configThen add an entry describing the connection:
Host my-ec2
HostName YOUR_PUBLIC_IP_ADDRESS
User ec2-user
IdentityFile ~/.ssh/<your-key-name>-macbookThe Host line is the alias we type, HostName is the public IP (or Public DNS name), User is the login user for the AMI, and IdentityFile points to the private key for this machine. With that saved, connecting is now a single short command:
ssh my-ec2We can confirm the config is being used by adding -v to the command, which prints the identity file and hostname SSH resolved from the alias. If the public IP changes, we only have to update one line in the config rather than remember a new address.
Recap
Prefer generating a fresh key per machine over copying private keys around. It keeps revocation simple.
An
~/.ssh/configentry turns a long connection command into a short alias and gives you one place to update when the instance’s IP changes.
